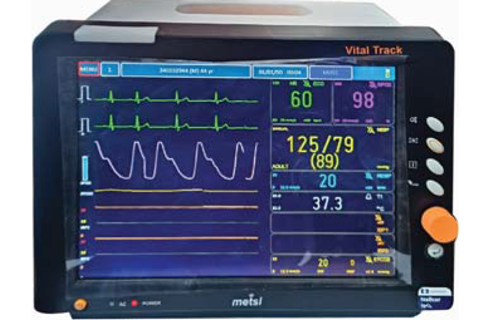

Vital Track – (12.1″) – M.S. Medical Systems

12.1″ color TFT with Nellcor Digital Technology
Standard Parameters: 3/5 lead ECG, SPO2, NiBP, Tempeprature & Respiration
Upto 7 Channel Programmable waveform
Memory Upto 200 hrs of Trend storage
Adult/Pdiatric/Neonate Modes
Audio and visual alarms with 3 different levels of priority: high, medium and low
Arrhythmia and ST-segment analysis
Optional: 12 lead ECG, EtCO2, 2-IBP, Thermal printer wall mount stand

Example

ECG
Channel	11 Channel
Electrode	3/5 lead
Display	11 Waveforms with HR
Lead	Lead I, II, III, aVr, aVI, aVf, V
Gain Selection	0.5, 1, 1.5 or 2
Sweep Speeds	12.5,25 or 50 mm / sec
Heart Rate Range	20 - 300 bpm
Heart Rate Accuracy	± 1 BPM
Frequency Response	0.05 to 40 Hz
CMRR	> 100 dB
Input impedance	> 100 M ohms
SpO2
Technique	Transmission Method
Display	Plethysmograph, Pulse Strength, Pulse Rate and % of oxygen saturation
Sweep Speeds	12.5, 25 or 50 mm/sec
SpO2 Range	0-100%
SpO2 Accuracy	± 2 for 70-100% and ± 3 for 40-70%
NIBP
Method	Oscillometric Measurement
Display	Systolic, Mean, Diastolic
Operation Modes	Auto, Manual, Stat
Interval	2-120 Minutes
Range	0-300 mmHg
Pressure Accuracy	± 3 mmHg
Measurement Time	30 to 150 Seconds
RESPIRATION
Method	Impendance Pneumography
Display	Respiration wave form with RR
Sweep Speed	6.25 / 12.5 / 25 / 50 mm / sec
Range	0 to 150 BPM
Apnea Alarm	10 - 90 Secs
Resolution	1 breath/minute
Accuracy	0.1 Degree C

Example

TEMPRATURE (2 Channel)
Sensor	Compatible to YSI 400 series
Resolution	0.1 Degree C
Measurement Range	10 to 45 Degree
Unit	C / F
Accuracy	0.1 Degree C
IBP
Measurement Method	Pressure Transducer Method
Display	Systolic, Mean, Diastolic with waveform
Channels	2 (IBP1 & IBP2)
Measurement Range	-40 to 300mmHg
Display Accuracy	± 3 mmHg
Pulse Rate Measurement Range	20 to 250 BPM
IBP Scaling	37, 75, 150 and 300
EtCO2
Method	Non-dispersive infrared Spectroscopy
Transducer Type	Sidestream CO2 Sensor
CO2 Measurement Range	0 ~ 150mm Hg
CO2 Resolution	0.1 mm Hg (0-69 mm Hg) 0.25mmHg (70-150 mm Hg)
Co2 Accuracy	>0-40 mm Hg (±2 mm Hg) 41-70 mm Hg (±5% of reading) 71-100 mm Hg (±8% of reading) 101-150 mm Hg (±10% of reading)
DISPLAY
Type	Color TFT Display
Size	15" Diagonally
Resolution	1024 x 768 dots
ELECTRICAL
Power input	90-270 V AC, 50-60 Hz
Inbuilt Battery Type	Li-Ion
Battery Rating	11.1V, 4000mAh
Charging Time	8-10 Hours
Operating Time	> 2 Hours
Power Consumption	< 35 W
GENERAL
Dimensions	360(L) x 140(W) x 340(H) mm
Weight	3.5 Kgs Max
Operating Temprature	upto 40 Degree C
Storage Room Temprature	upto 55 Degree C
Relative Humidity	upto 90% Non-Condensing

Warranty: 12 Months from the date of manufacturing
