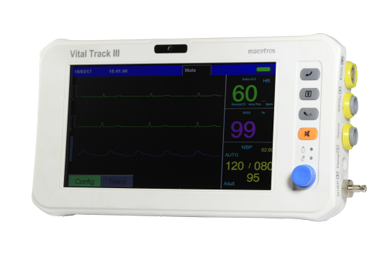

VT III
Product Description
Standard parameters: ECG, SpO2, NIBP
7 inch color TFT Display
3 channel waveform display
96 hours graphical & tabular trend for ECG & SpO2
Facility of 100 NIBP readings
Battery Backup of 4hrs.
Specifications
| ECG | |
|---|---|
| No of leads | Lead I, II, III, avR, avL, avF, V1-V6 |
| Mode | Differential |
| Input Impedance | > 10 Mohms |
| Leakage current | 10 microamps |
| Frequency response | 0.05 to 40HZ (Digital) |
| Protection | Against Defibrillator & ESU |
| SpO₂ | |
| Range | 0-100% |
| Accuracy | ± 2% for 70-100% ± 3% for 50-69% |
| Pulse rate range | 20 to 250 BPM |
| Pulse rate accuracy | ± 3BPM |
| NIBP | |
| Range | 0-250 mmHg |
| Accuracy | ± 3 mmHg |
| Mode | Automatic, Manual & STAT |
| Display | Systolic, Diastolic & Mean Pressure |
| Measurement Time | 30 to 150 Seconds |
| Measurement intervals | Programmable |
| Display | |
| No of channels | 2 Nos |
| Sweep speed | 12.5 / 25 / 50mm / sec |
| Gain | 0.5, 1, 1.5, 2 |
| Type | High resolution 7" color TFT |
| Parameters | ECG / SpO₂ waveforms HR / SpO₂ / NIBP in numerics |
| Trend | |
| Duration | 24 Hrs. |
| Type | Graphical / Tabular |
| Resolution | 1 Minute |
| Alarms | |
| ECG (Heart Rate) | |
| High | 0 - 250 BPM Programmable |
| Low | 1 - 249 BPM Programmable |
| SpO₂ | |
| High | 0 - 100% Programmable |
| Low | 1 - 99% Programmable |
| NIBP | |
| High | 0 - 250 Programmable |
| Low | 1 - 249 Programmable |
General
| Dimension | 200 x 100 x 200 mm |
| Weight | 3 kgs |
| Power | 230 V, 50-60Hz |
| Battery | 11.1 V, 2200 mAH |
| Operating time | 2 Hrs. |
| Charging time | 8 Hrs. |
Upgradable to Thermal Printer
Accessories
1. Finger Probe
2. Patient Cable
3. Adaptor
4. Cuff (Adult)
Warranty: 12 Months from the date of manufacturing
