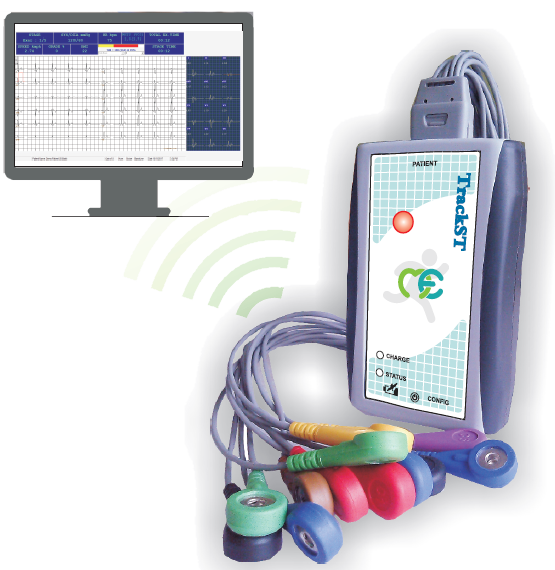

Track ST
Product Description
12 Lead ECG Recording.
TAB Based ECG.
Auto Interpretation.
Continuous ECG Monitoring.
Alert Notification.
Help Emergency Button
PC Software Integration.
A4 Size printing on external WiFi printer.
Compare & Analyse multiple patient Data.
Specifications
| Data Aquisation | |
|---|---|
| Input Channels | Simultaneous acquisition of all 12 leads |
| Input Impedance | > 500 Mohms |
| CMRR | -105 dB |
| Protection | Against Defibrillator & ESU |
| Transmission Distance | 10 Meters in single room |
| Reports | |
| Method | Windows Compatible Printer |
| Paper Type | A4 Size Graph Paper |
| Report Formats | 12 Lead in Test Rhythm 12 lead Linked Median in Test 12 lead Stage wise Average Report Tabular Final Summary Report Selected Parameter Trend Report Full Disclosure Report |
| Electrical | |
| Power Supply | 5V/ 1A Charger |
| Power Consumption | 0.5 Watts |
| Leakage Current | < 10 Microamps |
| Time Constant | 3.2 Seconds |
| Battery Rating | 3.7 V, 2000 mAH Li-Ion |
| Recharge Time | 6 Hours |
| Operating Time | 12 Hours |
| ECG Processing | |
| Transmission | Wi-FI (802.11 b/g/n) |
| Leads | All 12 Leads |
| Sampling Rate | 500 Samples/Sec/Channel |
| Filters | Low Pass : 0.05 Hz to 125 Hz Programmable Noise : 50 HzAC Interference Muscle : 35 Hz Tremor |
| Baseline Control | Digital Signal Processing Algorithm |
| ST Measurements | Automatic with Programmable J Point Selection |
| Average Beats | Real Time Cascade Average of last 6 Seconds |
| ECG Storage | Beat to Beat ECG Data for Complete Test |
| Full Disclosure | Compressed ECG Data for Complete Test |
| PC End Software Display | |
| Type | High Resolution color SVGA/ADC 16 Bit |
| No. of Traces | 12 Leads |
| Sweep Speed | 25 mm/sec, 50 mm/sec |
| Frequency Response | 0.05 to 125 Hz |
| User Configurable | Heart rate & target heart rate |
| Display Data | Stage elapsed and total time Treadmill speed and grade 12 Lead average with zoomed average for maximum ST change METS, Blood pressure & BP prompt Resting & Current average complexes with ST measurements Procedures & protocol select |
| Lead Off | Automatic detection |
| Physical Characteristics | |
| Dimension | 111 mm (L) x 70 mm (W) x 27 mm (H) |
| Weight | < 100 gm (Without Accessories) |
Warranty: 12 Months from the date of manufacturing
