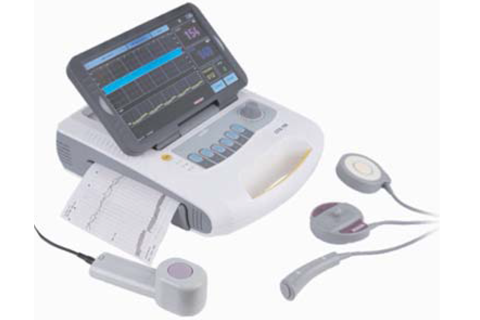

CTG 150
Product Description
- 10″ Color TFT with
- Twin monitoring probes with Cable
- Pulse Doppler with 9 elements for better
- Inbuilt High Resolution 6″ Thermal array printer.
- Automatic Fetal Movement detection.
- Patient Data Storage for more than 10
- WiFi Enabled for Central Monitoring.
- Real Time Transmission to Mobile (Optional).
- Automatic Analysis
Specifications
| Fetal Heart Rate | |
|---|---|
| Technique | Pulsed Doppler with autocorrelation |
| Frequency | 1 MHz |
| Measurement Range | 50 to 210 BPM / 30 to 250 BPM |
| Resolution | 1 BPM |
| Intensity | < 10M W/sq.cm |
| Scaling | 30 BPM |
| FHR Chart width | 8 cm |
| Uterine Activity | |
| Technique | Strain Guage sensor element |
| Measurement Range | 0 - 100 units |
| Chart width | 4 cm |
| Recorder | |
| Type | High Resolution thermal printer |
| Chart Speed | 1/2/3 cm/min |
| Record Paper | Z fold/ Thermo sensitive paper |
..
| Electrical | |
|---|---|
| Power Supply | 100-240V AC 50 Hz + 10%, 60Hz |
| Power Consumption | < 50W |
| Inbuilt Battery | Rechargeable 11.1V,4400 mAh Li-Ion |
| Battery Operating Time | > 3 Hours |
| Speaker | 2 W |
| Physical Characterstics | |
| Weight | < 1.5 Kg |
| Dimensions | 73 H X 295 W X 240 D (mm) |
| Operating & Storage Condition | |
| Operating Temperature | 40°C |
| Storage Temperature | 60°C |
| Pressure | 50 to 160 Kpa |
| Humidity | Up to 90% non condensing |
Warranty: 12 Months from the date of manufacturing
For more details you can contact us using below enquiry form.
Trade Information
| Payment Terms | A/C Transfer, Cheque |
| Delivery Time | 1-7 Days |
| Supply Ability | Depends on product Per Week |
| Packaging Details | As Per Product |
| Main Domestic Market | All India |
