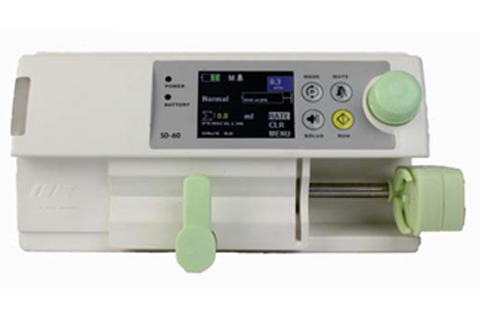

SD 60

Example

DISPLAY
Type Color	TFT Module
Size	2.8"
Resolution	240 (RGB) X 320
GENERAL
Loading	Front
Automatically detected Syringe Sizes	10,20, 50/60 ml
Syringe brand calibration	All brands, User selectable major brands and manual calibration of local brands
Modes	Normal, KVO, Body Weight Mode & Patient Control Anaelgesia
Flow Rate range	10ml = 0.1ml/hr - 300.0 ml/hr 20ml = 0.1ml/hr - 400.0 ml/hr 50/60ml = 0.1 ml/hr - 1000 ml/hr
Least count in flow rate	0.1ml/hr
Syringe size auto detection	Yes
Drug Name	24 drug library
Alarms	Near Empty, Over, Occlusion,
	Syringe Dislocation, Malfunction,
	Low Batt, Low batt Shutting down
Occlusion	a Low = 300+/-1OOmmHg (40.7+/- 13.3 KPa)
	b. Medium= 500+/- 100 mmHg (66.7 +/- 13.3 KPa) c. High = 800+/- 200mm Hg (106.7 +/- 24.7 KPa)
Total Volume range	0.1ml -9999 ml
Bolus	Auto & Manual
Auto Bolus Setting	a. 1000 ml/hr for 50/60 ml syringe b. 300 ml/hr for 10 ml syringe c. 400 ml/hr for 20 ml syringe
Drug delivery chart	Start Date & Time, End date & time, Drug Name, Infusion rate set.
ELECTRICAL
Power input	110-260VAC, 47 - 63Hz
Inbuilt Batter Type	Li-ion
Battery rating	7.4V/2200mA
Charging Time	6 hours
Operating Time	4 hours
Power consumption	15 Watt
OPERATING
Temperature	O' to 45'C
Pressure	86-106Kpa
Relative Humidity	20-90% Non Condensing
STORAGE
Temperature	-1O'C to 55'C
Pressure	86-106Kpa
Relative Humidity	20-90% Non Condensing
Dimension	(270 X 150 X 110) in mm
Weight	2.4 Kg
