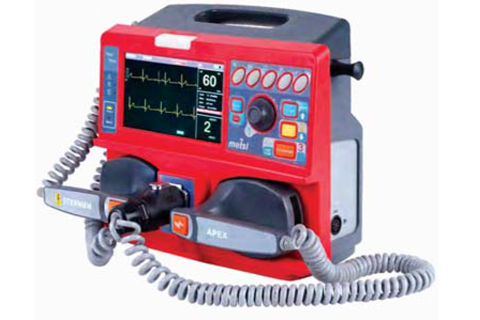

AED Vital Wave
AED Vital Wave
Product Description
- 7″ colour TFT display
- Easy energy selection upto 270 joules
- Less than 10 seconds for full charge 270 joules
- More than 40 shocks on full charge battery
- Event trend and storage upto 24 hrs
- ECG acquisition via paddles, ECG cable and multi-function therapy electrodes
- Manual, Cardioversion, AED & pacer modes
- Paddle Contact Indication with voice prompt support
- Adult & Pediatric patient compatibility
- High current bi-phasic defibrillation waveform
- Displays selected and delivered energy
- Advisory protocols comply with AHA &ERC guidelines
Specifications
| Display | |
|---|---|
| Type | Color TFT Display |
| Size | 7" Diagnally |
| Resolution | 800 x 480 Pixels |
| Measuring Parameters | |
| Channel | 2 CHannel |
| Electrode | 3/5 Leads |
| ECG Acquisition | Patient Cable and Paddles |
| Display | 2 Waveforms with HR and Joules selected |
| Lead | Lead I, II, III, aVr, aVL, aVf, V |
| Gain Selection | 5/10/15/20 mm/mv |
| Sweep Speeds | 12.5,25 or 50 mm / sec |
| Heart Rate Range | 30 - 240 bpm |
| Heart Rate Accuracy | ± 2 BPM |
| Frequency Response | 0.05 to 40 Hz |
| CMRR | > 100 dB |
| Input impedance | > 100 M ohms |
| Defibrillator | |
| Maximum charging time to 270 joules | 8 seconds |
| Energy Selection | 2,3,5,7,10,20,30,40,50,70,100,150,200,250,270 |
| Synchronous operation | Yes |
| Recorder | |
| Type | High Resolution thermal array recorder |
| Printing Speed | 25 mm/sec |
| Printer Paper Size | 57 mm x 20 Mtr. |
| Details on print | HR,ECG w/f along with Energy Delivery Date, Time, Patient Details (ID, Name, Age, Sex), Joules Selected, Sweep Speed and Gain |
| ELECTRICAL | |
| Power input | AC 230 V, 50 Hz |
| Battery Rating | 14.8 V/4400 mAh, Li-Polymer |
| Charging Time | 8 Hours |
| Operating Time | 40 + Shocks (270 Joules) or more than 3 Hous Monitoring without Printing |
| GENERAL | |
| Weight | 5.4 Kgs Max |
| Dimensions | 403(L) x 152(W) x 324(H) mm |
| Working Temperature and Humidity | 0-40 Deg C & upto 90% Non Condensing |
Warranty: 12 Months from the date of manufacturing
For more details you can contact us using below enquiry form.
Trade Information
| Payment Terms | A/C Transfer, Cheque |
| Delivery Time | 1-7 Days |
| Supply Ability | Depends on product Per Week |
| Packaging Details | As Per Product |
| Main Domestic Market | All India |
