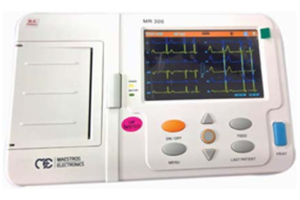

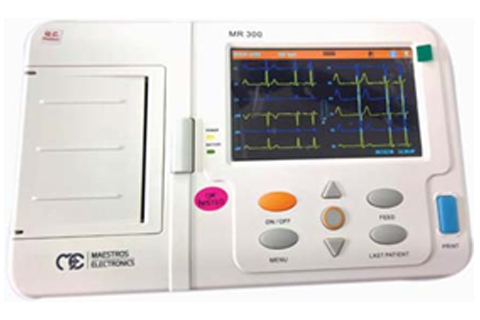

MR 300
Product Description
5” Color TFT display
12 Leads simultaneous ECG acquisition
3 Channel ECG Recording
Interpretation Facility
Memory storage for 5 patients
Auto & Manual mode of operation
Has inbuilt PDF convertor which facilitate transfer of ECG from the device to USB in PDF format
Display of 12 Lead ECG waveform
ECG lead annotation facility
Specifications
| Electrical | |
|---|---|
| Power Supply | 110 VAC to 260 VAC, 50 - 60 Hz |
| Power Consumption | 30 Watt |
| Filters | Digital AC/ 50 Hz |
| Battery Rating | 7.4 V, 2200 mAh, Li-ion Battery |
| Recharging Time | 4 Hours Max. |
| Operating Time | > 40 ECG’s |
| Measuring Parameters | |
| Leads | 12 Standard Leads |
| Mode of Operation | Auto / Manual |
| Long Lead Print | Yes |
| ECG Print Style | 3, 3+1 |
| Display Lead | Yes |
| Display Type | 5” Color TFT |
| Display Resolution | 800 x 480 Pixels |
| Frequency Response | 0.05 to 125 Hz |
| Sweep Speed | 12.5/25/50 mm/s |
| Sensitivity | 5/10/15/20 mm/mV |
| CMRR | > 90 dB |
| Input Impedance | > 100 M Ohms |
| Patient Storage Data | 5 Patients |
| Printer Type | Thermal Printer |
| Paper Width | 80 mm |
| Memory Stick Interface | Yes |
| Interpretation | Yes |
| Operating & Storage Condition | |
| Temperature | 25 - 55 C |
| Pressure | 50 - 160 Kpa |
| Humidity | Up to 90% non condensing |
| Physical Characteristics | |
| Weight | 850 Grams |
| Dimensions | 250 (L) x 155 (B) x 65(H) mm |
Warranty: 12 Months from the date of manufacturing
For more details you can contact us using below enquiry form.
Trade Information
| Payment Terms | A/C Transfer, Cheque |
| Delivery Time | 1-7 Days |
| Supply Ability | Depends on product Per Week |
| Packaging Details | As Per Product |
| Main Domestic Market | All India |
