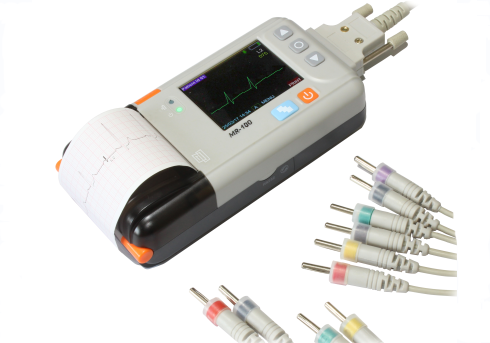

MR 100
Product Description
2.8” Color TFT
12 Lead simultaneous acquisition
Memory storage of 2 patients
Mode – Auto, Manual, Measurement
1 Lead ECG Display
Inbuilt High Resolution
2” Thermal array printer
Inbuilt rechargeable battery
Light Weight & Portable
Specifications
| Electrical | |
|---|---|
| Power Supply | 110 VAC to 260 VAC, 50 - 60 Hz |
| Power Consumption | 42 Watt |
| Filters | Digital AC/ 50 Hz |
| Battery Rating | 7.4 V, 1500 mAh, Li-ion Battery |
| Recharging Time | 8 Hours Max. |
| Operating Time | > 40 ECG’s |
| Measuring Parameters | |
| Leads | 12 Standard Leads |
| Mode of Operation | Auto / Manual |
| Long Lead Print | Yes |
| ECG Print Style | 1 / 2 / 3 Leads |
| Display Lead | Yes |
| Display Type | 2.8” Color TFT |
| Display Resolution | 320 x 240 Pixels |
| Frequency Response | 0.05 to 125 Hz |
| Sweep Speed | 12.5/25/50 mm/s |
| Sensitivity | 5/10/15/20 mm/mV |
| CMRR | > 90 dB |
| Input Impedance | > 100 M Ohms |
| Patient Storage Data | 2 Patients |
| Printer Type | Thermal recorder |
| Paper Width | 55 mm |
| Measurement | HR, Axis, Interval |
| Operating & Storage Condition | |
| Temperature | 25 - 55 C |
| Pressure | 50 - 160 Kpa |
| Humidity | Up to 90% non condensing |
| Physical Characteristics | |
| Weight | 500 Grams |
| Dimensions | 180 (L) x 88 (B) x 56(H) mm |
Warranty: 12 Months from the date of manufacturing
For more details you can contact us using below enquiry form.
Trade Information
| Payment Terms | A/C Transfer, Cheque |
| Delivery Time | 1-7 Days |
| Supply Ability | Depends on product Per Week |
| Packaging Details | As Per Product |
| Main Domestic Market | All India |
