Ultima Basic Model

Product Description

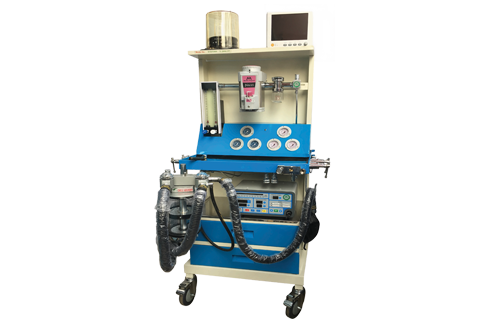

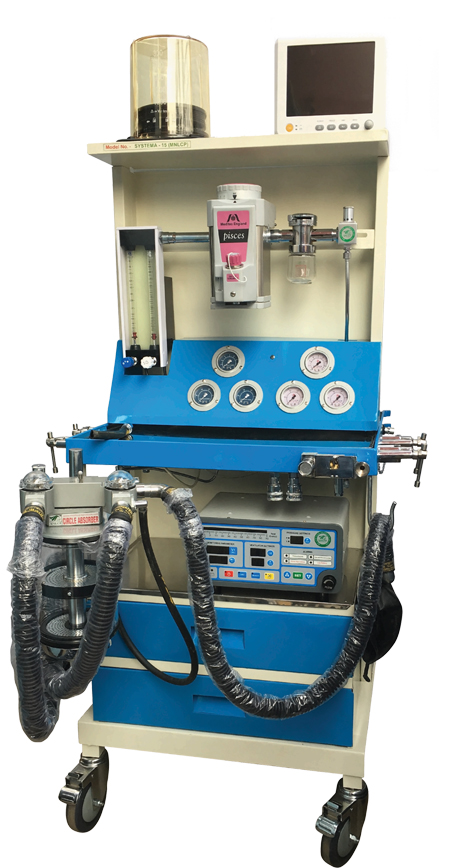

This Anaesthesia Machine is offered to the esteemed customers at highly competitive prices. These machines are ideally used in medical sector such as hospitals and others, thus, are highly demanded in the market. Our range of machines is manufactured by employing the most modern technology and machinery. The  Anaesthesia Machine offered by us is widely acknowledged by the clients for its efficient functioning, rugged construction, easy usage and durable standards.

A. The Aparatus :

Tubular Rigid Steel Section Duly Powder Coated With Rear System Wheel. Sufficient Space Provided  At The Top  Level Of  Lower Drawer Along With  Guarded Table  Top Steel  Tray. Top Tray Provided At Eye Level For Keeping Monitoring Equipments. Four Antistatic Castor Wheels With Brake Have Been Fitted For Easy Mobility.

B. Attachment :

1. Hypoxia Guard: 3 Tube (mnlcp’s Glass Tube) Hypoxia Guard With Rotameter Has Attached (oxygen,nitrous & Air Rotameter).230 Mm Long Accurately Calibrated Rotating Bobbing Flowmeters.Oxygen : 100 Ml / Min To 8 Lpm & Nitrous Oxide : 200ml / Min To 12 Lpm.
2. Yoke: 2 Oxygen Compact Yoke & 2 Nitrous Compact Yoke & One Air Compact Yoke Has Inserted.
3. Non-return-cum-pressure Relief Valve: Blow Off Excess Pressure In The Circuit. Release Pressure 100 Cm H2o+10% , H2o-10%.
4. Change Over Unit: Emergency Oxygen Flush Button Is Provided At Table Top Level On The Front . Flow Range 35 Lpm Calibrated To 60 Psi (+5,-5).
5. Regulator: 2 No’s Nitrous Oxide Regulator (cut Off Facility) & 2 No’s Oxygen Preset Regulator, Been Provided With 2 No’s Nitrous Oxide & 2 No’s Oxygen Pressure Gauge(2.5) Fixed On Bend Gauge Post.
6. Alarm: Oxy Failure Alarm, If Flow Of Oxygen (02) Goes Flow Below 2.5 Lpm (audio-visual).
7. Emergency Unit Also Attached With It. Double Manifold Also Attached With It. Dual Drawer System Is Already There.

C. Patient Circuit :

1.bag Mount, 2.rebreathing Bag (2 Ltrs), 3.corrugated Tube (anti Static), 4.expiratory Valve, 5.angle Mount, 6.catheter Mount, 7.face Mask (adult & Child) With Tube, 8.adopted Plug In Hose.

D. Optional :

Circle Absorber System : Twin Canister Circle Absorber System Is Provided With Swiveling Facility. Canisters & Inspiratory Valve Have Quick – Fit Tapper Fitting With Rubber Ring For Leak Proof Seal & Easy Maneuver Ability. Bag Mount & Apl Valve Assembly Have Swivel Arms For Easy Accessibility. Ventilator, Monitor Also Attached With It, Provision For Vaporizer Is There.

Warranty: Mfg Warranty For Machine Is 1 Year.
