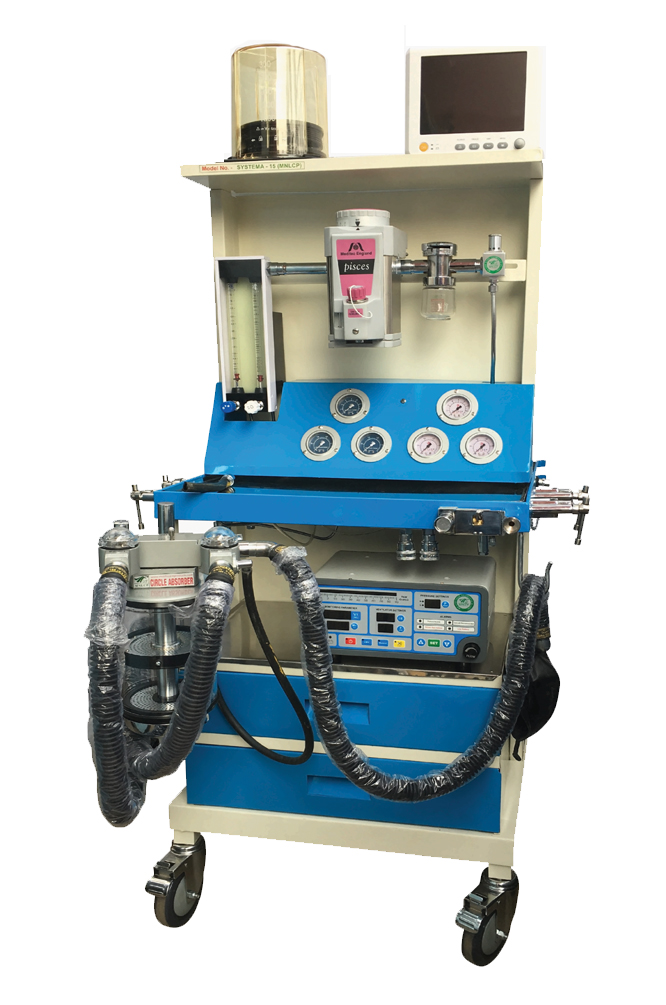

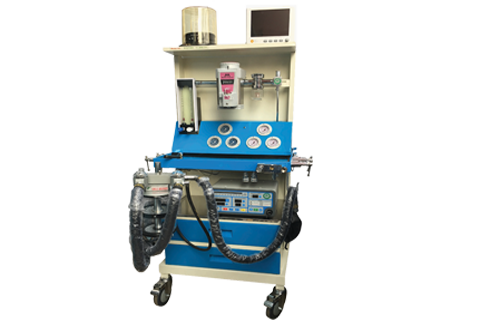

Ultima Basic Anaesthesia Workstation

Ultima Basic
Anaesthesia Workstation

Product Description

Key Features:
1. 3 gas system Hypoxic Guard-Oxygen, Air, Nitrous.
2. Ventilator with Dual Mode –Adult & Paediatric.
3. Monitor with 5 multipara facilities.
4. Imported ISO Fluorine/ Savo Fluorine/ Halothane Vaporizer.
5. Circle Absorber System.
6. Extra Space with dual drawers’ soundless ball channel systems.

Technical Specifications

Patient Type Adult and Pediatric
Tidal Volume 50 to 1200 ml.
Frequency 8 to 40 BPM
I:E Ratio 1:1, 1:2, 1:3 and 1:4
Mode of Operation CMV and Manual
Alarms Pressure Low and High, Active patient, driving gas failure, low battery indication,circuit disconnect, Minute Volume low and High.
Monitoring Parameters Tidal Volume and Minute Volume
Pressure Display 10 to 90 mBar in LED graph
High Pressure Limit 20 to 60 mBar
Low Pressure Limit 0 to 20 mBar
Power Input 90 to 260 VAC 50/60 Hz
Minute Volume High 3 to 50 Liters
Minute Volume Low 0 to 47 Liters
Driving Gas Input 3 Bar Pressure
Battery Backup up to 2 Hours (Lithium-ion)

6 Standard Parameters: ECG, RESP, NIBP, SPO2, 2-Temp, PR/HR.

8” high resolution colour TFT LCP display with touch screen.

Real time S-T segment analysis, pace maker detection.

Multi lead ECG wave forms display in phase

Up to 2 hours working capacity of built in rechargeable battery

Networking capacity

Patients info input management function

Capture dynamic waveforms.

Efficient resistance to interference of defibrillator and HF knife.

Large volume of tabular and graphic trends information storage and easy to recall.

5 Lpm O2 @ 210C ± 20C

Vaporiser 5% ±0.25 of the delivered agent or ± 15% of the dial setting (whichever is greater)

Vaporiser 8% ±0.4 of the delivered agent or ± 15% of the dial setting (whichever is greater)

Calibrated at sea level

Environmental Specification –

Temperature 150C to 350C
Humidity 30% to 75% relative humidity.

Works consistently in altitudes upto 2440m above sea level

Performance Reliability –

Performs with gas flow rates from 0.2 – 15 lpm

Systems are Selectatec® Compatible With Interlock & Cage mount (ISO 23mm tapers)

Types of Vaporizers – Isoflurane, Sevoflurane, Halothane, Enflurane. Can be fitted well.
