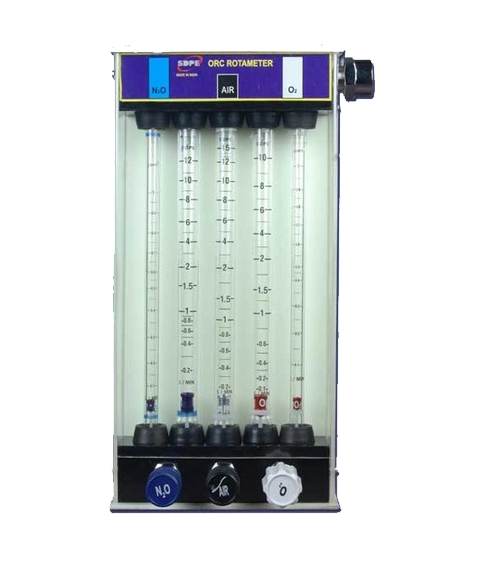

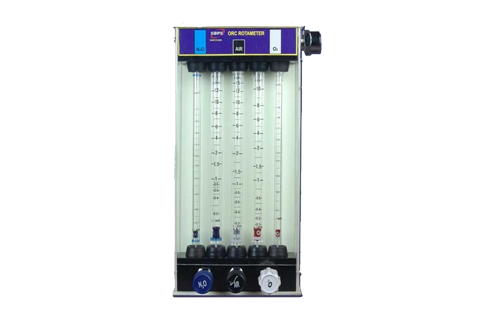

Hypoxic Guard 5 Tubes Rotometer

Product Description

We are presently offering an unmatched and unparalleled assortment of Hypoxia Guard. Precision engineered, these guards are widely appreciated by our clients for their durability, low maintenance and fine finishing. Our Hypoxia Guard is widely demanded in various application areas like hospitals, nursing homes, and clinics. We, not just only ensure quality of our medical equipments but also offer these at a nominal price.

Specifications

Oxygen Inlet	7/16” X 20T WF male thread, from rear bottom
N2Inlet	1/2” X 20T WF male thread, from rear bottom
Air Inlet	1/4” BSP male thread, from rear bottom
Mixed gas outlet	At top right, through 23mm taper as per ISO 5356-1
Control Knob Oxygen	White, with special profile as per ISO 5358
Control Knob N2	Blue serrated, serration depth <1mm, knob dia lower than Oxygen knob dia
Control Knob Air	Black serrated, serration depth <1mm, knob dia lower than Oxygen knob dia
Working pressure (Max)	420 kPa (N2, O2 &AIR)
Oxygen Tube Range Low Flow	0.1 – 1 l/min, with Graduations in lpm unit
Oxygen Tube Range High Flow	1 – 10 l/min, with Graduations in lpm unit
N2Tube Range Low Flow	0.1 – 1 l/min, with Graduations in lpm unit
N2Tube Range High Flow	1 – 12 l/min, with Graduations in lpm unit
Air Tube Range	0.1 – 15 l/min, with expanded scale at 0.1 – 1 l/min Graduations in lpm unit
Float Colour	Red –for O2, N2O & AIR
Accuracy (N2, O2 & Air)	As per CM Standard
Tube length (N2, O2 & Air)	230 mm
Markings/identification	Float mark on tubes & other markings as per ISO 5358

Warranty : 12 Months from the Date of Manufacturing.

For more details you can contact us using below enquiry form.

Trade Information

Payment Terms	A/C Transfer, Cheque
Delivery Time	1-7 Days
Supply Ability	Depends on product Per Week
Packaging Details	As Per Product
Main Domestic Market	All India
