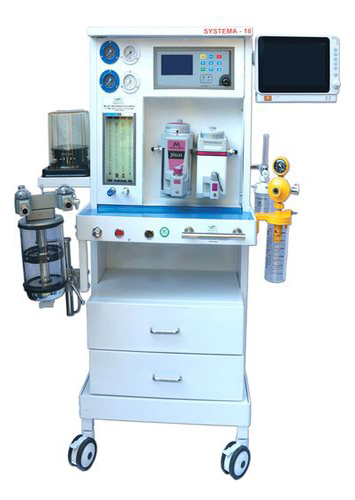

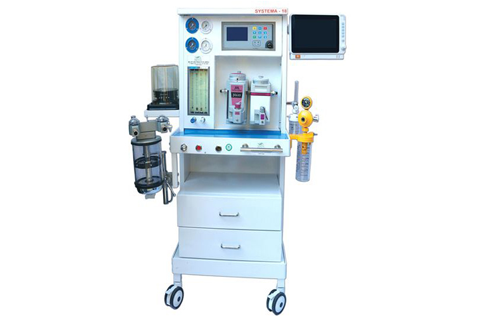

High Performance Anaesthesia Workstation
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”1905″ img_size=”medium” alignment=”center” onclick=”img_link_large” el_class=”re-lightbox”][/vc_column][/vc_row][vc_row top_margin=”page-margin-top”][vc_column][vc_column_text]
SYSTEMA- 18
Anaesthesia Workstation
[/vc_column_text][box_header title=”Product Description” type=”h3″ bottom_border=”1″ top_margin=”page-margin-top”][vc_column_text]Key Features:
1. 4 Tube Adult & Paediatric system Hypoxic Guard-Oxygen, Nitrous.
2. 5 Display System Ventilator with Dual Mode Adult & Paediatric.
3. Monitor with 5 multipara facilities.
4. Imported ISO Fluorine/ Savo Fluorine/ Halothane Vaporizer.
5. Manometer Circle Absorber System.
6. Extra Space with dual drawers’ soundless ball channel systems.
7. Back side operated for gas input system with Yokes & SS.[/vc_column_text][box_header title=”Technical Specifications” type=”h3″ bottom_border=”1″ top_margin=”page-margin-top”][vc_tabs][vc_tab title=”Ventilator” tab_id=”1523364152866-2-7″][vc_column_text]
Display : 5 LCD
Mode of Operation : IPPV, SIMV, PLV, BAG and Standby
Tidal Volume : 50 to 1500 ml
Respiratory Rate : 6 to 40 BPM
SIMV Rate : 1 to 39 BPM
I: E Ratio : 4:1 to 1:4
Plateau : 0 to 50%
Trigger : 1 to 9 cmH2O
Pressure Limit : 0 to 60 mBar
Alarms : Pressure Low and High, RR Low and High,
FIO2 Low and High, Active patient, Driving
Gas failure, low battery indication, Circuit
Disconnect, Minute Volume Low and High
Monitoring Factors : Tidal Volume, Minute Volume, RR, FIO2, PEEP
[/vc_column_text][/vc_tab][vc_tab title=”Obtained” tab_id=”1521497195303-2-7″][vc_column_text]
Power Input : 90 to 260 V AC 50/60 Hz
Driving Gas Input : 3 Bar Pressure
Sensor Type : Envitec SpiroQuant H
Patient Type : Adult and Pediatric
Battery Backup : 2 hours (Lithium-ion)
