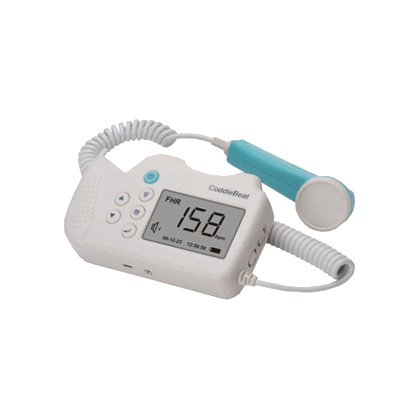

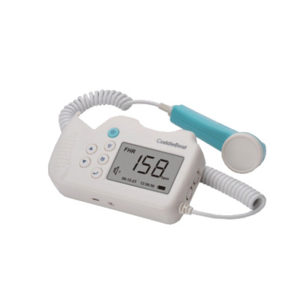

CoddleBeat
Product Description
LCD Display with Backlight
High Sensitive transducer
Built in Speakers
Advanced Digital Signal Process (DSP) Technology
Long time continuous use
Inbuilt rechargeable Li-ion battery
Ergonomic design compact and light weight
Easy to use and handle
Specifications
| Display | LCD with Backlight |
| Transducer Frequency | 1.0 MHz |
| Sensitivity | 10-12 weeks onwards |
| FHR Measuring Range | 50-210 BPM |
| Accuracy | ± 2% |
| Overall Sensitivity | > 90db |
| Iob (mW/cm²) | < 5mW/cm² |
| Isata (mW/cm²) | < 7mW/cm² |
| Battery Type | Li-Ion |
| Battery Voltage | 3.6 V nominal |
| Battery Life | 350 x 1 minute Examninations (Depending on use and Battery Charge) |
| Max Audio output Power | 1000 m W RMS Typical |
| Operating Temperature | +5°C to +40°C |
| Operating Humidity | < 80% |
| Storage Temperature | +5°C to +40°C |
| Storage Humidity | < 93% |
| Weight | 280 gms |
| Dimensions | 130 (H) x 85 (W) x 30 (D) |
Warranty: 12 Months from the date of manufacturing
For more details you can contact us using below enquiry form.
Trade Information
| Payment Terms | A/C Transfer, Cheque |
| Delivery Time | 1-7 Days |
| Supply Ability | Depends on product Per Week |
| Packaging Details | As Per Product |
| Main Domestic Market | All India |
