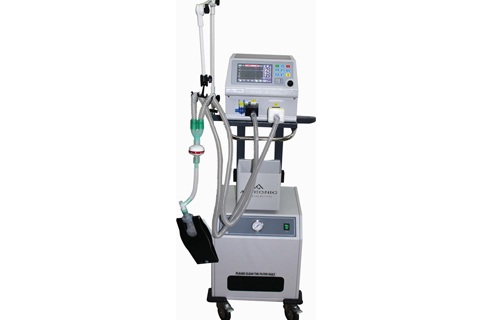

Alveonic EVS 630 COMPACT ADULT & PAEDIATRIC VENTILATOR
Specifications
| Intended Use | |
| Adult and Pediatric patients | |
| Display / Indicators | |
| LCD SCREEN | 7" ColorTFT |
| Modes of Ventilation | |
| Invasive | VCMV, PCMV, V-SIMV, P-SIMV, PRVC, PSV |
| Non Invasive | PCMV, P-SIMV, PSV, Oxygen Therapy |
| Set Parameters | |
| Vt | 50 to 2000 ml |
| Respiratory Rate | 1 to 60 bpm |
| Ti | 0.2 to 8.0 Sec |
| I: E ratio | 4: 1 to 1: 4 |
| FiO2 | 21 to 100% |
| T Plateau | 0 to 50% |
| PEEP | Oto 30 cmH2O |
| Pressure Trigger | 0.1 to 5.0 cm H2O |
| Pressure Support | 5to 40 cmH2O |
| Pressure Limit | Oto 60 cmH2O |
| Pressure Slope | 50 to 150 cmH2O/Sec |
| Ti Max | 0.2 to 8.0 Sec |
| Expiratory Trigger | 3 to 301pm |
| Oxygen Therapy Flow | 2 to 80 !pm |
| Backup Mode for Invasive | VCMV, PCMV, V-SIMV, P-SIMV, PRVC, |
| Backup Mode for Non Invasive PCMV,-SIMV | |
| Backup Respiratory Rate | 1 to 60 bpm |
| Monitored Parameters | |
| Expiratory Tide! volume | 0 to 3000 ml |
| lnspiratory Peak Pressure | Oto 99 cmH2O |
| Expiratory MV | 0 to 99 Ipm |
| Respiratory rate | 0 to 99.9 bpm |
| FiO2 | 18 to 100% |
| Pmean Pressure | Oto 99 cmH2O |
| PPlateau Pressure | Oto 99 cmH2O |
| Leak | 0 to 100% |
| Graphs | Flow, Pressure and Volume waveforms |
| Alarms | |
| Peak lnspiratory Pressure | Low&High |
| Minute Volume | Low&High |
| Respiratory Rate | Low&High |
| FiO2 | Low&High |
| Others | Battery Low, Oxygen Inlet Low, |
| AIR Inlet Low, Apnea & FiO2 error | |
| Other Settings | |
| 100% 02 | 1to9Min |
| lnspiratory Hold | 1to9Min |
| Expiratory Hold | 1to9Min |
| Positive Pressure Scale | 20 to 60 cmH2O |
| Negative Pressure Scale | 5to 15 cmH2O |
| Flow Scale | 20 to 160 !pm |
| Volume Scale | 200 to 3000 ml |
| Time Scale | 10 to 30 Sec |
| Technical Features | |
| Dimensions (W x D x H) | 330 x 380 x 290 (approx in mm) |
| Weigh | 9 Kg (approx) |
| Keys | Tactile membrane type keys / Touch screen |
| Knob | Rotary encoder |
| Max Peak Flow | 120 !pm |
| Oxygen and AIR Supply | 4Bar |
| Battery Type | Lion 14.8V / 2.6 Ah |
| Backup Time | 2 hours |
| Power Supply | 100 - 240V/50-60 Hz AC |
| Power Consumption | 20 wtts |
