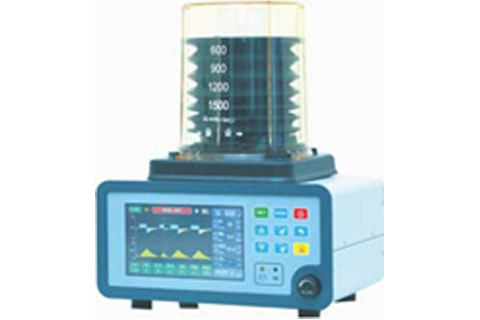

Alveo VENT AV270
Product Description
Alveo – VENT AVS 270 is a Microprocessor based pneumatically operated, Volume and Time Cycled Electronic control Anesthesia Ventilator. Alveo – VENT AVS 270 is a user friendly Anesthesia ventilator and suitable for adult and pediatric patients. Alveo – VENT AVS 270 has a 7′ TFT display, touch screen with FIO2 monitor volume and pressure graphs. This model has a lithium-ion battery back-up for 2 hour. Alveo Vent AVS 270 can be operated in VCMV, VSIMV, PCMV, PSIMV, VRVC, VSV, BAG and stand by modes. Alveo – VENT AVS 270 is compatible with all types of Anesthesia Machines.
Specifications
| Display | 7" TFT Touch Screen |
| Mode of Operation | VCMV, VSIMV, PCMV, PSIMV, VRVC, vsv; BAG |
| Tidal Volume | 50to 1500ml |
| Respiratary Rate | 1 to60BPM |
| SIMV | 1 to39BPM |
| I:E Ratio | 4:1, 1:4 |
| Plateau | 0to50% |
| Trigger | 0.5to5cmH2O |
| Pressure Limit | 20to60mBar |
| Peep | 1 to30cmH2O |
| Alarms | Pressure Lowand High, RR Low and High, FIO2 Low and High, Active patient, Driving Gas Failure, low battery indication, Circuit Disconnect, Minute Volume Low & High |
| Monitoring Factors | Tidal Volume, Minute Volume, RR, FIO2, PEEP Obtained |
| Power Input | 90 to 260V AC 50/60 Hz |
| Driving Gas Input | 3 Bar Pressure |
| SensorType | Envitec SpiroOuant H |
| Patient Type | Adult and Pediatric |
| Battery Backup | 2 Hours (Lithium-ion) |
